TTEC-BMS-FO2-FC2-DM-CL2 – MODULAR (ELECTRO)MECHANICAL CONTROL UNIT FOR TURNSTILES

2162,67  (1787,33  excluding VAT)

SKU: TTEC-BMS-FO2-FC2-DM-CL2 Category:

Description

Locinox (electromechanical control unit (3-arm 120° or 4-arm 90°)) makes it easy to create a high-quality, maintenance-free turnstile. You can adapt the design of the turnstile to your fence design! The Turnitec mechanism is suitable for any turnstile and ensures fast installation. Thanks to its 100% modular design, you can adapt the mechanism to your customers’ requirements. Comfortable and safe operation is ensured by the optional shock absorption system, which is not affected by temperature changes.

  • 100% modular system: tailored to customer requirements and expandable at any time
  • Can be used for 3 (120°) and 4 (90°) pillar turnstiles
  • Optional interchangeable left and right mechanical or electromechanical modules (“Fail Open” or “Fail Close”)
  • Automatic return to the starting position (using industrial pressure springs) after each passage
  • Backflow prevention (locking after 60° or 45° rotation): prevents two persons from passing at the same time

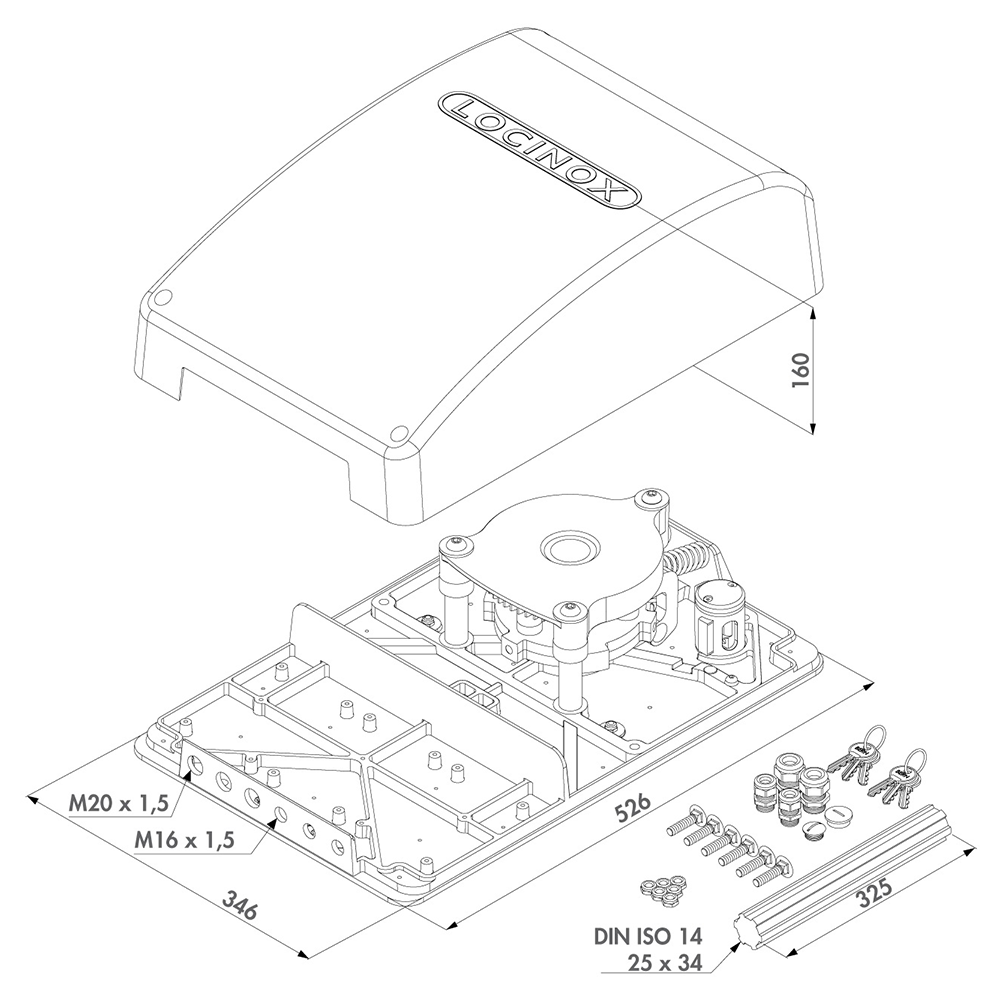

  • Highly robust construction and strong connection to the turnstile, thanks to a 34 mm diameter pivot axle (length 325 mm).
  • Made of stainless parts (stainless steel and aluminium)
  • Choice of black or stainless steel welding plate for easy attachment to each turnstile.
  • Optional damping system ensures smooth and even movement. Amortization is smooth and unaffected by temperature changes (patented system)
  • Possibility to set the duration of the signal
  • IP55 housing protects the mechanism against water, dirt, wind, dust and pests

The perfect solution for full height turnstile constructors! A fully modular steering mechanism which adapts to your needs. Put it in a standalone unit with 100% mechanical modules or take control by installing the electromechanical modules and connect it into your new or existing access control network.

TURNITEC

INSTALLATION MANUAL PDF

Related documents:

Additional information

Weight 20,656 kg
