Description

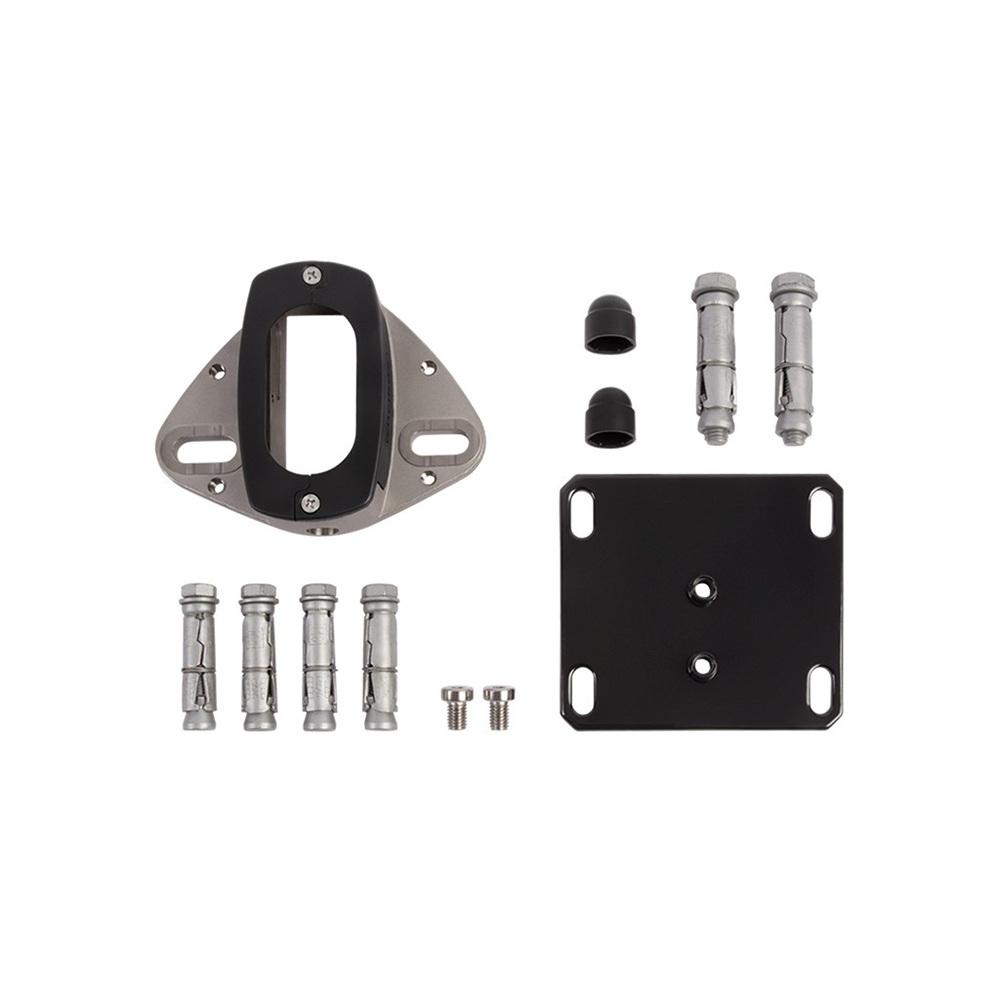

Additional kit for mounting the Interio gate closer directly on the ground. This kit consists of a ground hinge and a wall plate. All fixing elements are included.
SPECIFICATIONS:
- Wall panel in hot-dip galvanised metal, RAL9005 (black) powder-coated
- Aluminium fixing block for lower hinges
- Anchor bolts included

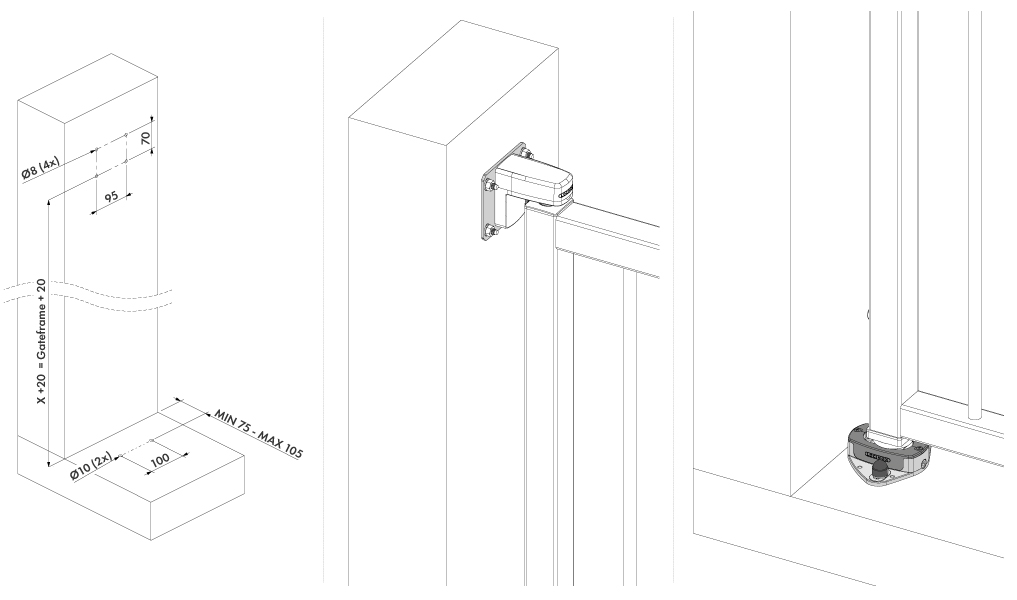

- Distance between door and wall: min. 29 mm – max. 54 mm
- Depth adjustment: 15 mm
- Height adjustment: 15 mm: 10 mm
- Minimum opening under the door: 22,5 mm
- Compatible only with the Interio door closer
