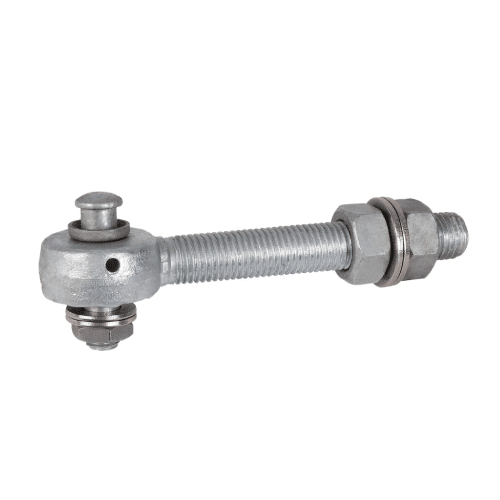

1034ROLL-HDG – HOT-DIP GALVANIZED BEARING EYEBOLT FOR 3D AND 4D HINGES

Price range: 47,12 € through 58,88 € (38,94  - 48,66  excluding VAT)

Sold as 2 in pack.

SKU: 1034ROLL-HDG Categories: , Tag:

Description

1034ROLL-HDG – This bearing eyebolt can be integrated in every GBMU M16 and M20 hinge. It guarantees a very flexible opening and closing of your gates. Perfect combination with Locinox gate closers. Resistant to vandalism. Sold as 2 in pack.

Specifications:

  • Recommended combination with Locinox gate closers
  • Hot-dip galvanized bearing eyebolt, transverse bolt and screws
  • Stainless steel ring (6 x DIN125A)
  • Dual sealed stainless steel bearing
  • Vandal-proof
  • 500h salt spray resistant

Additional information

Weight 1,46 kg
Dimensions 200 × 40 × 40 mm
Manufacturer

Locinox

Bolt thread

M16 – max 200 kg, M20
